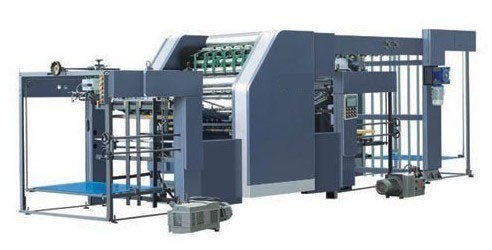

Automatic Sheet Cardboard Laminating Machine

Name:  Automatic Sheet Cardboard Laminating Machine
Sort:   Flute Laminator Series
Sort ID:   1100A
Click:  5680  Times
Product Info:

Automatic Sheet Cardboard Laminating Machine 1100A

General Introduction:
1100A
  Automatic Sheet Cardboard Laminating Machine, using new type Feida vacuum paper guide to
face paper and body paper separately, and adopting overlap paper feed way, so paper feed process are
more steady and precise. Pasting to the body paper is based on different surface paper requirement, so
we can adjust thickness of the pasting.  Equipping with remote control pasting ajustment system, even
if the machine is running, the pasting will still keep thinner and evener, therefore, it achieves effects of
increasing work efficiency and saving glue water. Couple  high strength grip paper compound roller to
locate, paste, first press the face and the body paper, then the two paper will be pressed four times by
strong  pressing in roller to delivery stacker,  at last the products will be piled in three sided even way,
and height of the piled papers can reach 1650mm.    This machine adopts Siemens PLC programmable
controller, multipole pressure, automatic control hydraulic station.       The finished product is not only
precise in laminating, but also very firm and even. Meanwhile, they will directly enter into next process
such as die cutting without glue drying.Automatic production and high efficiency greatly reduce output
cost, can help company
createconsiderable benefit.

Main Technical Parameters :

 Model

1100A

 Max.pasting size

1100x800mm

 Min.pasting size

400x400mm

 Work speed

1200-4800 pcs/h

 Paper thickness

200-1500 g/m2

 Total power

19.1KW

 Weight

10.5T

 Packing size

7580x2000x2180mm



Automatic Sheet Cardboard Laminating Machine (YHZB-1000)

Characteristic and application:

YHZB-1000 Automatic Sheet Cardboard Laminating Machine, which is totally designed to coordinate
with the dynamic situation in high speed developing packaging industry,  especially meet the urgently
needs of market to fill up the vacancy in this area.  This machine collects mechanism, electricity,
photics,hydraulic pressure,  pneumatic power all the main technologies together, which is the leading
style in the domestic market.    One strong force air draft  perforation  belt paper guide is set to face
paper and body paper of the machine respectively, is driven by programmed servo electric motor, so
tempo is steady,paper feed smoothly and accurately.Couple high strength grip paper compound roller
to locate,paste,first press the face and the body paper, then the two papers will be pressed four times
by strong pressing in roller to delivery  stacker,    at last the products will be piled in three sided even
way,and height of the piled papers can reach 1700mm.This machine adopts Siemens PLC programmable
controller,  lots of photoelectric switch to monitor,  hydraulic pressure system and pneumatic power
system. The finished product is not only precise in laminating, but also very firm and even. Meanwhile,
they will  directly enter into next process such as die cutting  without glue drying.  Due to automatic
production, high efficiency and low cost, it is especially suitable for compound paper package  printing
industry such as high quality package, hangtag, greetings card and so on.Company can rely on the machine
to innovate equipment,enhance processing technique,reduce working procedure, eventually improve economic
performance and grow rapidly.



Main Technical Parameters :

 Model

YHZB1000

 Max.pasting size

930x650mm

 Min.pasting size

400x400mm

 Work speed

1000-2700 pcs/h

 Paper thickness

250-600 g/m2

 Total power

12.9KW

 Weight

8.5T

 Packing size

6500x1850x2300mm
