DWJ120-1600-2ply(PLC Cut) Corrugated Cardboard Production Line

Name:  DWJ120-1600-2ply(PLC Cut) Corrugated Cardboard Production Line
Sort:   Production Line Series
Sort ID:   1600
Click:  10900  Times
Product Info:

DWJ120-1600-2ply(PLC Cut)



. Main Technical Parameter

1. Model Type: DWJ120-1600-2ply(PLC Cut).

2. Maximum Mechanical Speed: 120 m/min

3. Breath: 1600 mm

4.  Flute Type: UV,  B1 ,B2  flute mm Height, ±2 /300mmmay select flute A, C, BC, D, E,F alternate


Flute Type and technical parameter

Flute

Height(mm)

Teeth Quantity/300mm

Remark

A

4.64.9

34±2

UV shape

C

3.63.9

38±2

UV shape

BC

3.2-3.3

44±2

UV shape

B

2.6-2.9

50±2

UV shape

D

2.0-2.2

78±4

UV shape

E

1.5-1.8

88±2

Might make UV to V shape according to the requirement of the clients

1.1-1.5

92±2



F

0.8-1.0

128±2



5. Economical production speed:

70-110    m/min, single face(2 ply )

Condition of Checking up and Acceptance (Examining condition): If the production line has been put into 2ply
production 10 minutes, run by 90% of the Maximum operation  speed:135 m/minute here,
the production line could be checked up and accepted.

Paper For Test:

Test for the highest speed of 2 ply: corrugated paper:125 g/m2 outer paper: 300 g/m2

Common test for 3ply and 5 ply: corrugating paper113-125g/m2Core Paper 125g/m2Inner paper 120-150g/m2
outer paper 120-200g/m2 NoteThe quality of paper is measured up above the standard of)

NATIONAL STANDARD B GRADE OF CHINA.

Paper For Production
   Corrugating paper 105-115g/m2Core Paper 105-115g/m2

Inner paper 110-135g/m2; outer paper 120-150g/m2

6. Steam Consumption:       ~800 kg/h

   Steam Pressure:          1.1-1.2 MPa

   The capacity of boiler (provided by Buyer): 1 ton/hour

7.  Power supply:     100 KW, (380/220Vac, 3 phases, 4 wires, 50Hz, or … )

8.  Length of production line:    30 meters

   Width of the production line:  ≥10~15 meters, better without pillar inside.

9.  Length of cutting       300-1300  mm

10.   Accuracy of cutting(at stable speed)  ± 1.5 mm

11. The color of paint can be selected by customer (better with color sample), our favorite color will be: main color, milk white;
    color for electric cabinet, dark purple blue…

2 PLY Single Face Corrugated Cardboard Production Line Equipment List
(WJ120-1600-2ply)

No.

Unit

Specification

Quantity

1

Hydraulic MILL ROLL STAND (Expanding chuck) ),includes:

φ1500*(800-1600) mm,

2sets

(1)TRACKS/TROLLEYS

4strips

(2)PAPER ROLL CHANGER

2 pieces

2

Auto Splicer(option)

150m/min

2 sets

3

FAST-CHANGE VACUUM SINLGE FACER(PLC frequency transducer control, color touch screen, auto adjustment of glue thickness)

TYPE:NDK32-1600, Corrugated Rollers: φ320 mm, B/B flute, quick change ~50 minutes

1set

4

PREHEATERelectro-motion

φ900mm

1set

5

PRE-CONDITIONERelectro-motion

φ900mm, Steam Shower.

1set

6

Single LAYER SPAN BRIDGE



1 set

paper guide device(Overhead crane)



1 set

7

PLC Rotary Shear Cut-Off and Convey Stacker



1 set

8

Glue making & Recycle System



1 set

9

Spare parts in 2  years operation

1. Friction plate of brake of Mill Roll Stand, 8 *4=32 pieces
2. Some bearings and some hydraulic electro-magnetic valves
3.  2 pairs of cutting knives of Cut-off……

1 batch


.  ILLUSTRATION FOR MACHINE UNIT

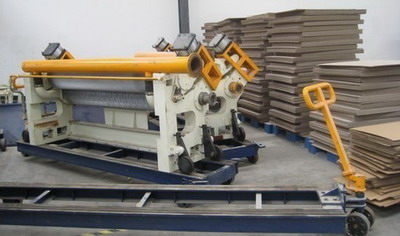

1Hydraulic Mill Roll Stand (hydraulic pressure, with Expanding Chuck)

(1)      The whole Mill Roll Stand realize clamping, ascending or descending, moving left or right, by 6 sets of hydraulic pressure cylinders.

(2)      The clamped scroll: Φ1500mm ×8001600mm. Brake with pressure air motion.

(3)      Two work positions, may clamp two scroll at the same time, may load or unload scroll without stop the production.

(4)      Weight of Scroll3000kg (at one work position).

(5)      Each Stand with two tracks, two trolleys, one Scroll Direction Changers.

(6)      Expanding type Clamp chuck, the size is changed by the diameter of the hole of the scroll core: 3″or 4″, do help to put an end to
          distortion of the core hole of the paper scroll, utilize to save the scroll paper as soon as possible, and overcome lopsided influence of
          tension of both non-concentric sides.



(7)      ABS Brake with pressure air motion, with DUAL PLATES structure and air exhausted holes, the air inside can circulated with outside,
          better heat radiating, decrease the abrasion of brake plate.



(8)      Each Stand with American style two rails structure, prevent shaking and weight bias in the course of clamping scroll and conveying:
          two tracks, two trolleys, one Scroll Direction Changers.



(9)      Each Stand with a whole set of hydraulic station, oil pipes, cylinders. The hydraulic control valves. All in one, easy for install!

(10)    Might receive the message from the Single facer or the Double Facer (the Glue machine) to move across to left or right.



2. Auto Splicer

New type, high speed, high efficiency fully automatic.

1.      Max. splicing speed : 150m/min.

2.      With tension force control system.

3.      The range of splicing: Zero-tail( end of original paper, begin of new paper).

4.      The width of splicing: 40/50mm.

5.      High precision, tensile force wheel is controlled by electron control to obtain stable splicing.

6.      The minimum interval time of splicing: 1 minute.

7.      Little order form which is 100 m, can be spliced continuously to 100m/min speed.

8.      Reliable sawtooth knife, cut the paper once. (No need to change.)



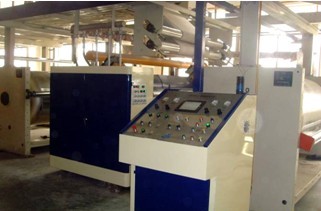

3. Fast- change Vacuum Single Facer

Equipped by vacuum structure. Pair of corrugated rollers make one paper sheet into one corrugated paper,
agglutinated with another paper sheet into  2ply single Face cardboard.  Different flutes needs different pairs
of corrugating rollers to make.

Flute Type:  UV, flutes B, B

B Flute, H=    mm.

B Flute, H=    mm.

Diameter of the corrugated Roller is Φ320mmmade of material 48CrMo alloy metalheat treatment
with high frequencyprecise grinding, surface rigidity is over HRC55-60.

       High temperature grease for Lubricating.

       The surface of Glue roller is plated with chrome, scored 24 fine thread(mesh)/inch, make glue feeding well-proportioned.

       The thickness of glue is digital displayed, is adjusted automatically according speed or by electro-motion, the thickness
           #118alue might be set by operator at any time and remembered    in the EMS Memory of PLC.

       Gluing width is adjusted by Electro-motion.

       Pressure of steam: 1.1-1.2Mpa.

       The high pressure Fan is equipped with Silencer.

       The glue feeding device can be pulled out by hydraulic cylinders by Electro-motion, easy for clean and maintain.

       Quick change flute, ~50 minutes.

       With infrared transfer for detecting paper break, protect automatically when paper is broken, the press roller and
           the glue trough will be pushed back.

       Main Drive is controlled by frequency transducer(inverter), save electric power, gentle start machine(less stroke)





                  (spare cassettes)


4. Pre-heater, Pre-conditioner

(1) Diameter of barrel for pre-conditioner, pre-heater is Æ900 mm;

(2)Large heating wrap angle on the barrel could be adjusted in range of 00-3200,
   is controlled by electro-motion, Germany Design.

(3)Polished work surface of heating barrel, Guide Rollers, then plated with hard chrome.

(4)New scientific international advanced compression resistance structure, which with bowl-like sides,
   higher efficiency of heat energy utilizing, much more safe and good-looking.

(5)Steam work pressure : 1.1-1.2 MPa.

(6)Condensate water is drained by flexible metal hose instead of siphon pipe, the drainage is more  thoroughly.

(7)Pre-conditioner is equipped with Steam Shower.

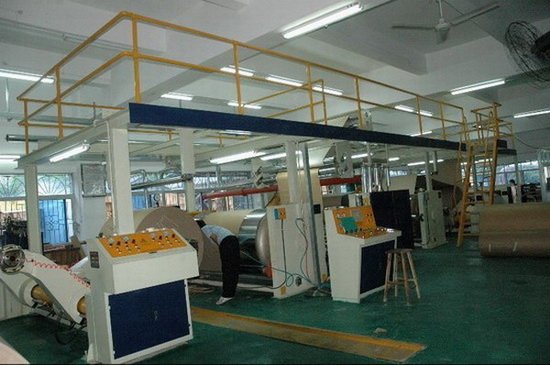

5. Single Layer Span Bridge

Convey the corrugated single face cardboard by Guide device,

   Germany structure of conveyor.

   With 2ply paper guide up device(overhead crane).

   With strong fences and ladders.

   At the bottom of the bridge, equipped with relevant illumination, be convenient to operate.

   The surface of all paper guide rollers is plated with hard chromium.

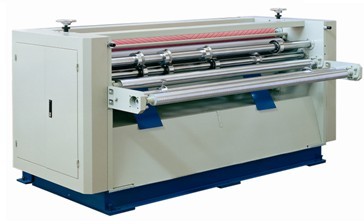

6. PLC Rotary Shear Cut-Off and Convey Stacker

1. Description:



SC series single face corrugated cardboard Shearer Cut-off is a new advanced equipment
for producing B,E, F…FLUTE single face corrugated cardboard equipped in production line,
also can cut base paper(such as white cardboard, kraft paper) into sheets(pieces),

Computer might deposit many order forms specification, and realize change order forms
without stop machine. Machine is controlled by PLC automatically. Main Drive is controlled
AC Frequency Transducer(inverter), save electric power.

Drive mechanism is equipped with arc shape teeth synchronization belt, long using life, less noise.
Cutting Precision of this machine is nice, stable system, low maintenance cost.

It’s co, nsisted of slitting section, transvers, e cutting se, ction, convey , , , and stacking section.



2. Main technical parameters:

, 2-1. Range of Cutting Length: 3001300mm

2-2.Valid Breadth: 1400mm, 1600mm, 1800mm, 2000mm

2-3. Max. mechanical speed: 100-120M/min,

2-4. Cutting Precision: ±1.5mm (at stable speed)



3. Main Characters:

3-1. Slitting section: equipped 4 sets of round blades slitting, 1-3 sheets out, economical and well using, easy to change blades.

Paper in-feed shafts are combined by mesh steel roller and sulfur rubber roller, special heat treatment, hard and abrasion endurance.



3-2. Transverse cutting section: Single knife rotary cutting, cutting edge is tidy, knife material is quality alloy, endurance and might be
re-grinded many times. knife shaft is special heat treated, installed by good quality imported bearings, cutting stable.



3-3. Convey section: there are 3 sections of belt convey, 1st section running fast and equipped vacuum suction device to separate single
face paper cardboard away; 2nd  section and  3rd  section running slow, and automatic drag away paper cardboards by PLC automatically.



3-4. Stacking section: Through PLC, stacking might be controlled by manual, or by photoswitch check, convey stack out after counting
automatically, no matter how many slitting out, might be transverse convey out tidily, save labor, develop automatic degree.

4. Installation Dimensions and Specification:

MODEL

Length(mm)

Width(mm)

Height(mm)

Weight(T)

Power(kW)

SC12

7500

2000

1400

3.5

15

SC14

7500

2200

1400

4

15

SC16

7500

2400

1400

4.5

15

SC18

7500

2600

1400

5

15

SC20

7500

2800

1400

6

18



7Glue Making & Recycle System

There are two barrels formed with Single facer to a recycled loop:

     Glue making vertical Barrel(higher): Glue making material is carried up through ladder by manual,
         equipped with a stirring motor, might make glue and temporary store,

     After glue stirring and making well, flowing to the glue trough of Single Facer(for feeding glue).

     Another little barrel(lower) is put beside single facer, might received glue flew out from Single Facer,
         realize a cycled loop automatically.

     Glue making material (reference): Starch(tapioca, or corn), Caustic Soda, mixture, Water.

Vertical Barrel(higher)

                  little barrel(lower)              Single facer

8The Output Direction Of The Cardboard Production Line

Give clear indication by customer, necessary, or, please select Condition A or B?

 Condition A:
